Compact Substation

A Compact Substation (also known as a Prefabricated Substation or Package Substation) is a type-tested, factory-assembled enclosure containing high-voltage switchgear, a distribution transformer, and low-voltage distribution switchboard equipment.

In short, it acts as a “miniaturized substation”—integrating all traditional indoor/outdoor substation equipment into a single, compact, and weather-resistant housing for seamless plug-and-play installation.

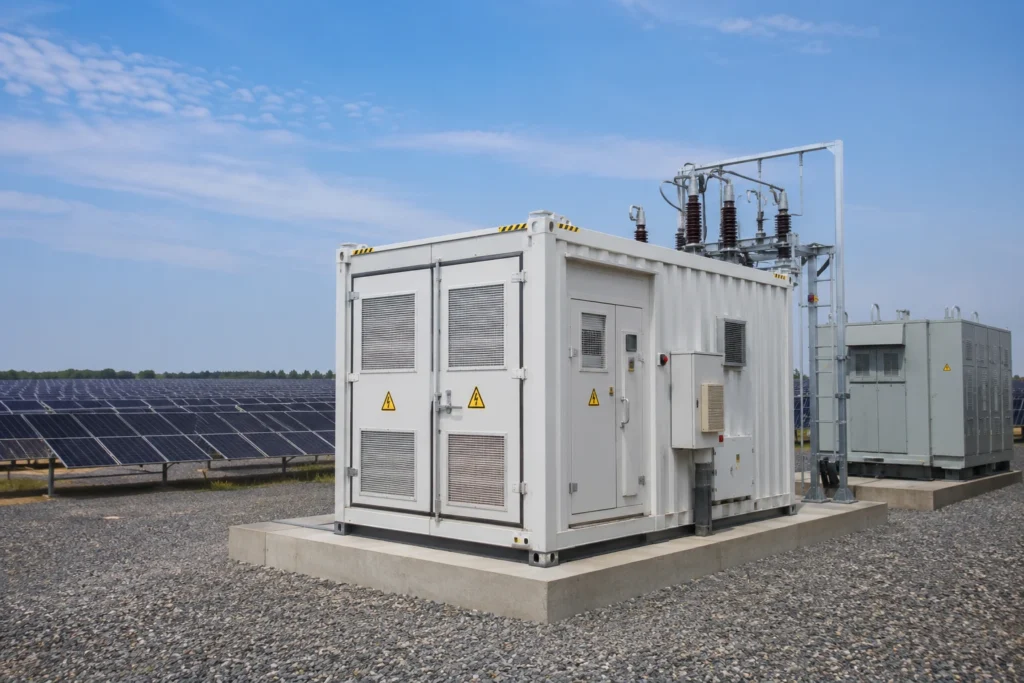

Solar Compact Substation

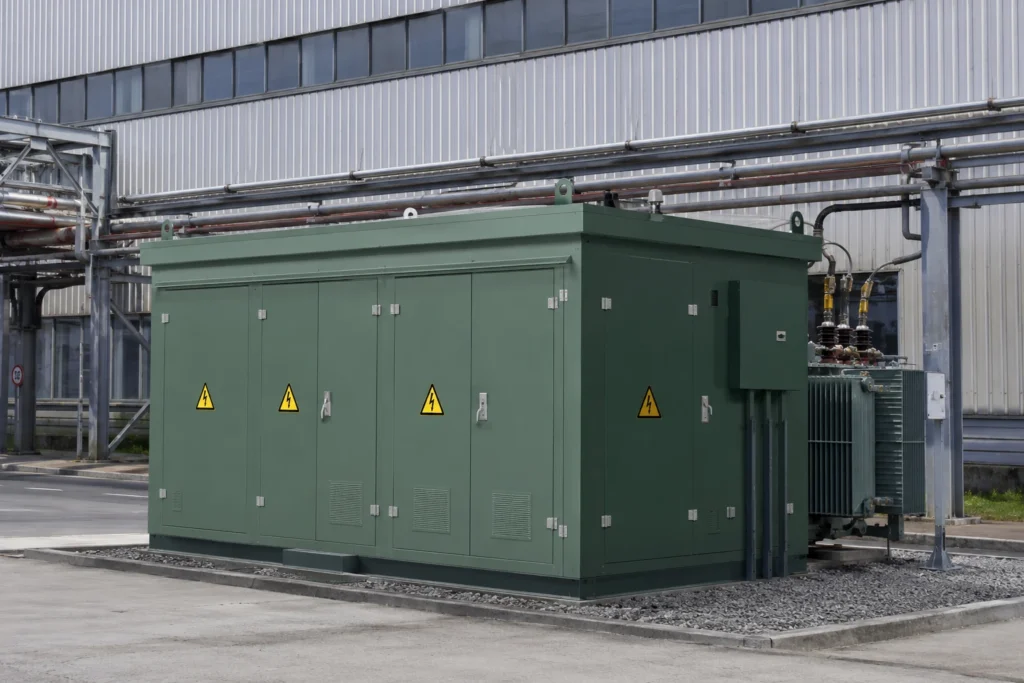

Industrial Compact Substation

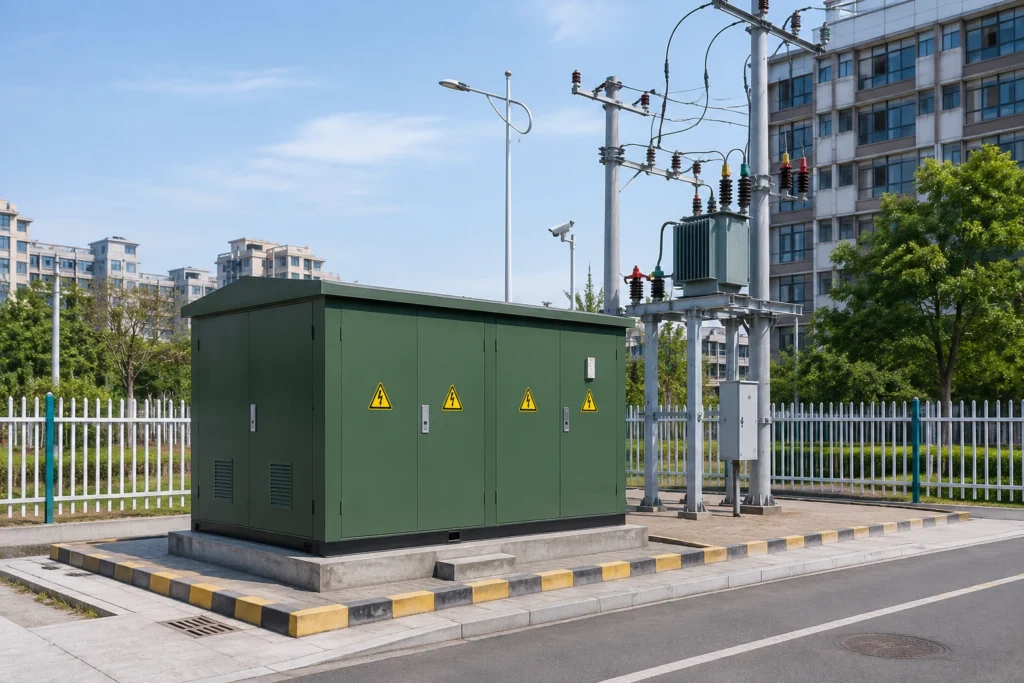

Utility Compact Substation

Key Components

A Compact Substation is typically divided into three segregated compartments:

High-Voltage (HV) Compartment: Houses HV switchgear or Ring Main Units (RMU) to control and protect incoming high-voltage power.
Transformer Compartment: Houses either a dry-type or oil-immersed distribution transformer that steps down high voltage (e.g., 10 kV / 33 kV) to low utilization voltage (e.g., 400 V / 230 V).
Low-Voltage (LV) Compartment: Handles LV distribution, metering, circuit protection, and power factor correction.

Major Advantages

Small Footprint: Occupies up to 70%–80% less space compared to traditional brick-and-mortar substations, making it ideal for space-constrained urban environments.
Factory Prefabrication: Entirely assembled, wired, and routine-tested in the factory, reducing onsite installation time by more than 80%.
High Safety & Reliability: Housed in durable enclosures made of stainless steel, aluminum alloy, or glass-fiber reinforced concrete (GRC), providing high protection (IP rating), weatherproofing, and tamper-resistance.
Flexibility & Mobility: Compact and easy to transport or relocate, capable of operating reliably in harsh environmental conditions (e.g., coastal, high-altitude, or desert climates).

Common Applications

Urban Distribution Grid: Residential estates, commercial districts, and city centers.
Industrial & Infrastructure: Manufacturing plants, airports, railways, and highway service areas.
Renewable Energy: Solar PV power plants and wind farms for step-up grid connection.
Temporary Power: Construction sites and large outdoor public events.
